From First Strip to Precision Repainting.
Capture. Plan. Stripe. Done Right.
Digitize Layout · Automate Striping
FJD PaintMaster Parking is the world's first high-pressure parking lot striping robot built around a fully digital workflow. It combines FJD Trion S2 site scanning, SiteMind world-model planning, vision-based alignment, and robotic high-pressure striping to support both new layout striping and existing-line repainting — helping crews reduce manual setup, deploy faster, and deliver more consistent markings.
New layout striping · Existing-line repainting · Multi-zone fleet
A complete digital workflow — from site capture to high-pressure striping.
Not just a robotic line marker. Three integrated tools work together so crews can move from raw site to finished parking lot striping with less manual setup.
FJD Trion S2
3D LiDAR site scanning of geometry, boundaries, existing markings, and obstacles.
SiteMind
World-model planning for new layouts and existing-line repainting.
FJD PaintMaster Parking
Robotic high-pressure striping with vision-based alignment for repainting.
Less Labor. Faster Striping.

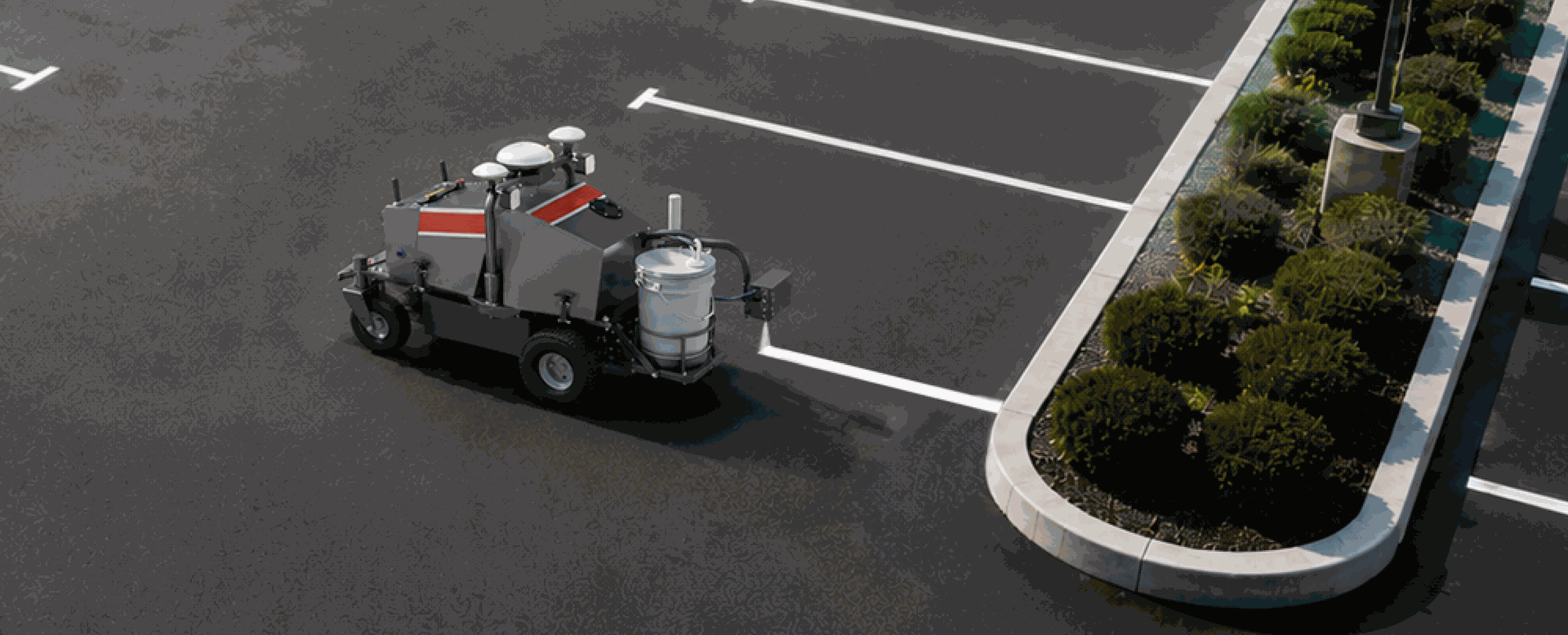

01Autonomous Marking
Follows planned routes to reduce repetitive manual work on parking lot striping jobs.

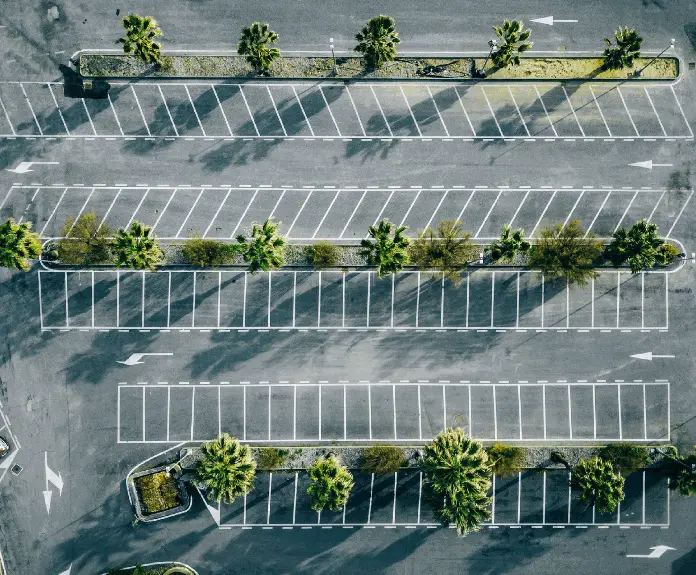

02Fast Site Capture
Use the FJD Trion S2 scanner to capture layout data faster and reduce measuring, pre-marking, and repeated checks.

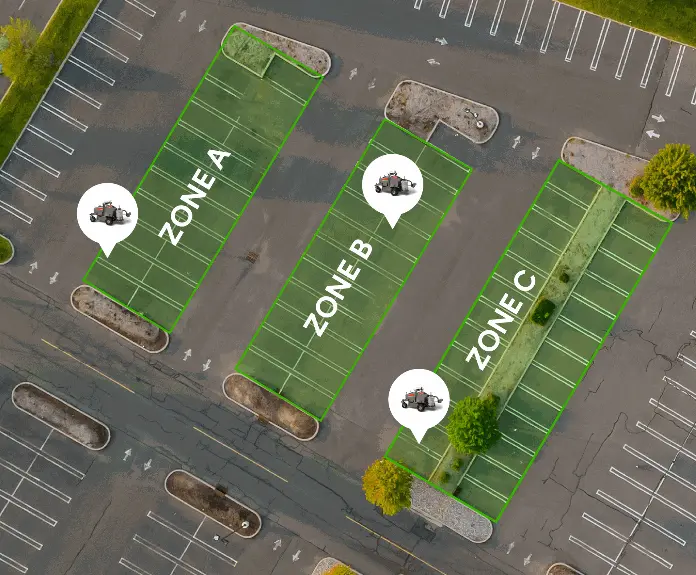

03Fleet Management
Coordinate multiple robots across large parking lots and multi-zone projects.
New Layouts and Repainting Work.

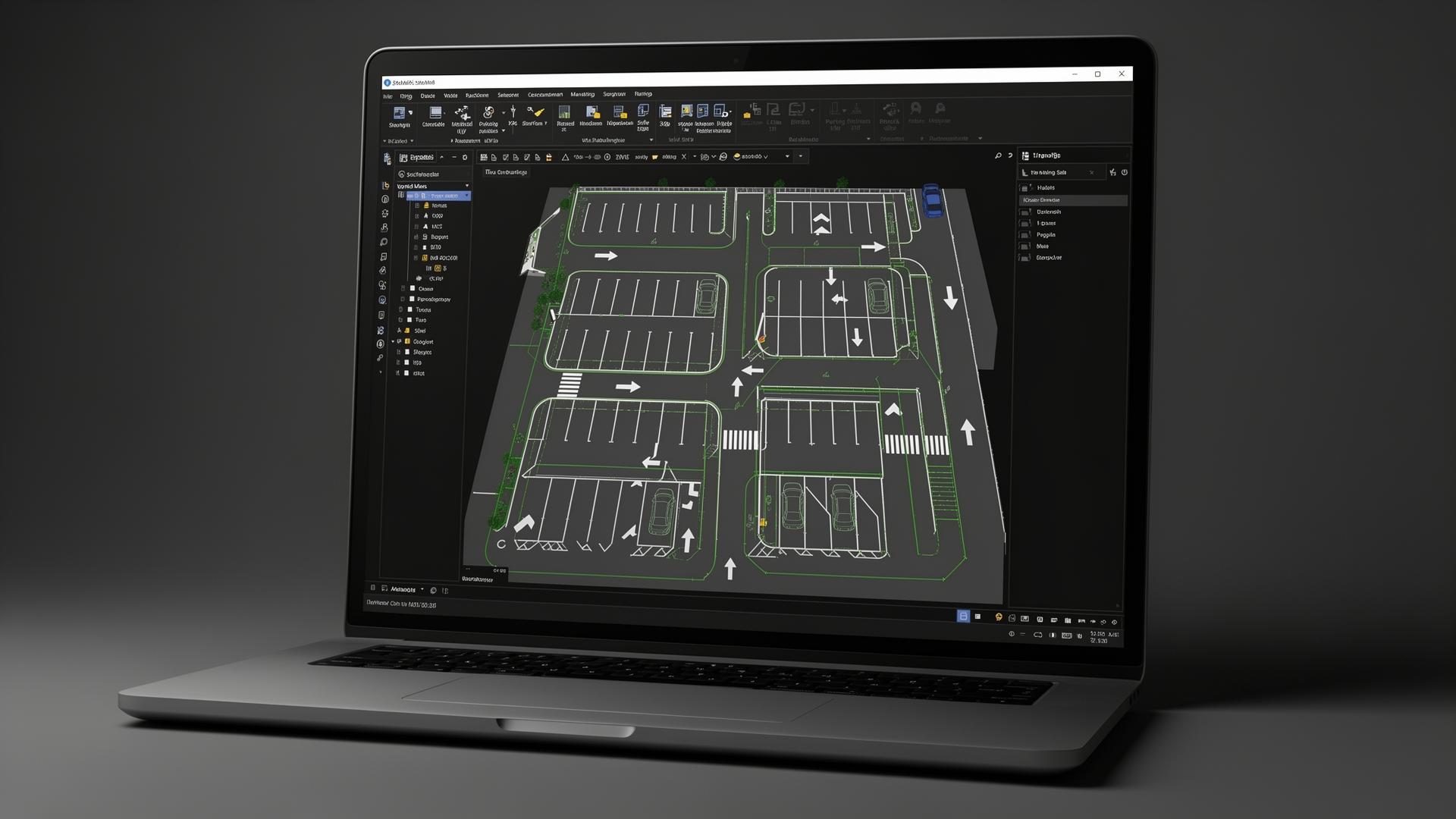

New BuildNew Layout Striping
Create layouts from a fresh site scan or an existing CAD plan. The robot follows the planned digital route end-to-end.

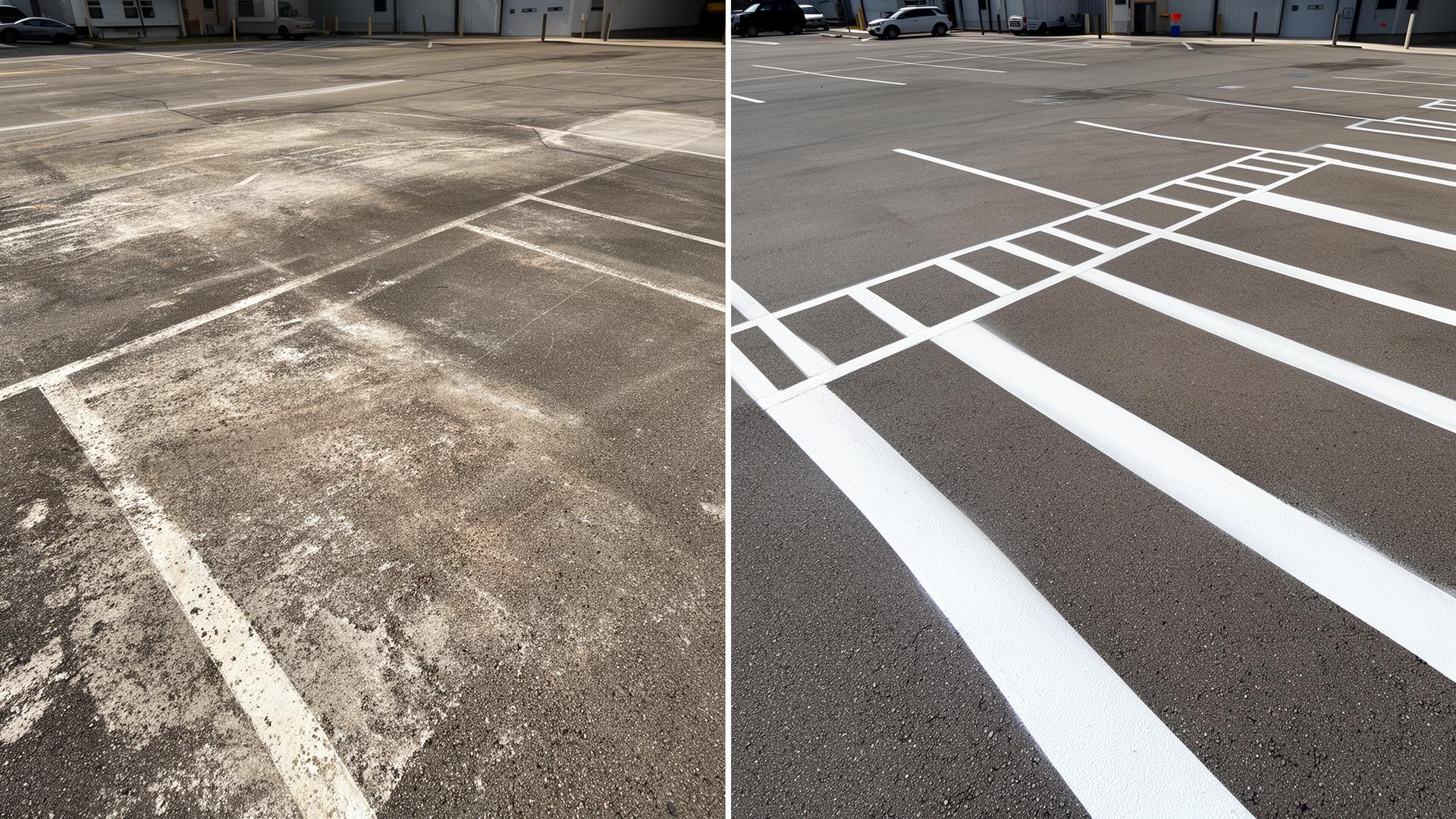

RepaintExisting-Line Repainting
Restore faded markings with vision-based alignment that follows existing line edges and centerlines for a consistent finish.
For new layouts, the robot follows the planned digital route. AI vision alignment is mainly used for existing-line repainting.
Scan → Plan → Simulate → Align → Stripe → Complete
Scan
FJD Trion S2 3D LiDAR captures full-site geometry, boundaries, existing markings, and obstacles in a single pass.
Plan
SiteMind builds the lot as a digital model — stalls, aisles, arrows, and safety zones.
Simulate
Validate striping routes, spray sequence, and obstacle handling before deployment.
Align
For new layouts, follow the planned digital route. For repainting jobs, use vision-based alignment to track existing lines.
Stripe
20 MPa robotic spraying lays consistent lines on asphalt and concrete.
Complete
Hand the site back ready for use, with a digital record of every line marked.

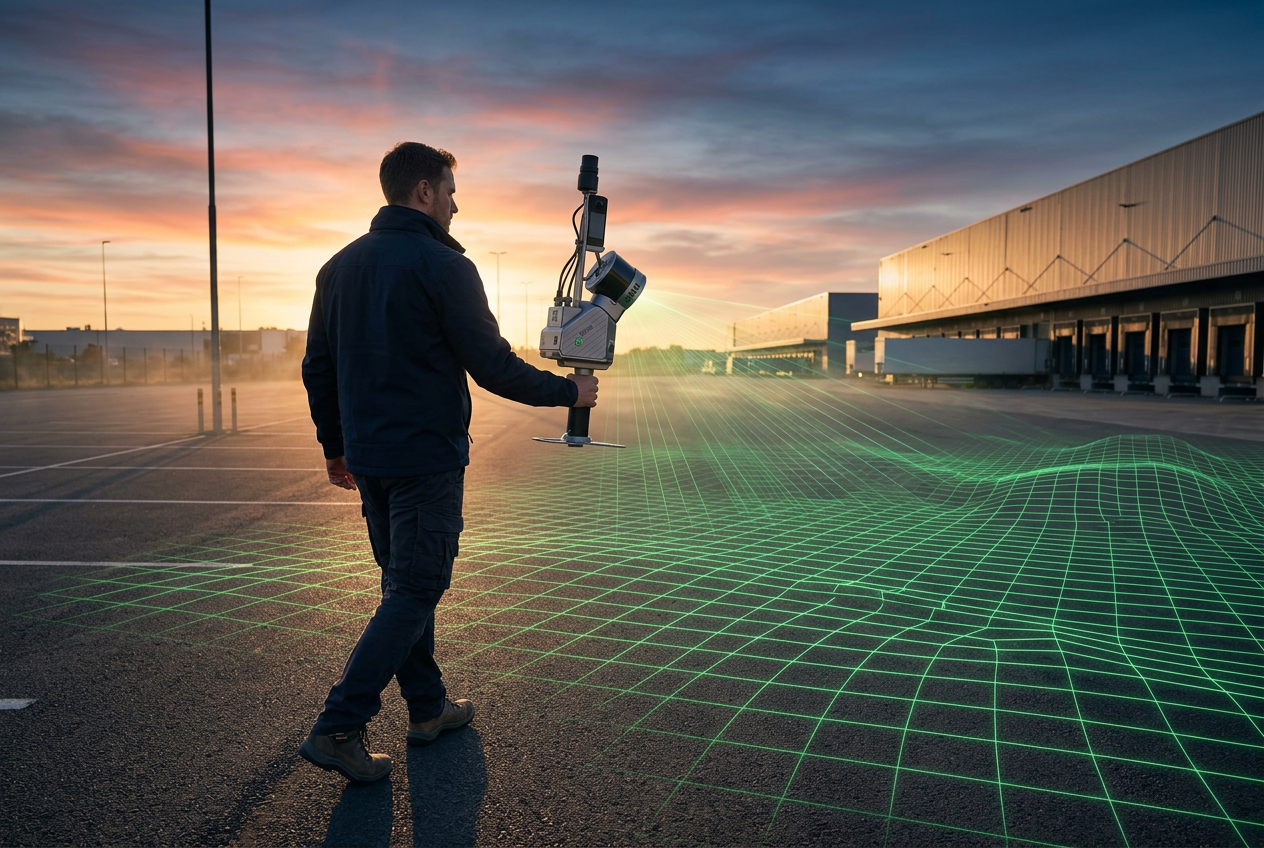

Capture the Site in 3D
FJD Trion S2 captures site geometry, boundaries, existing markings, obstacles, and surface conditions before striping begins.
Plan the Layout in SiteMind
Build new layouts or recreate existing markings, parking spaces, arrows, aisles, and safety zones in a fully digital workflow.

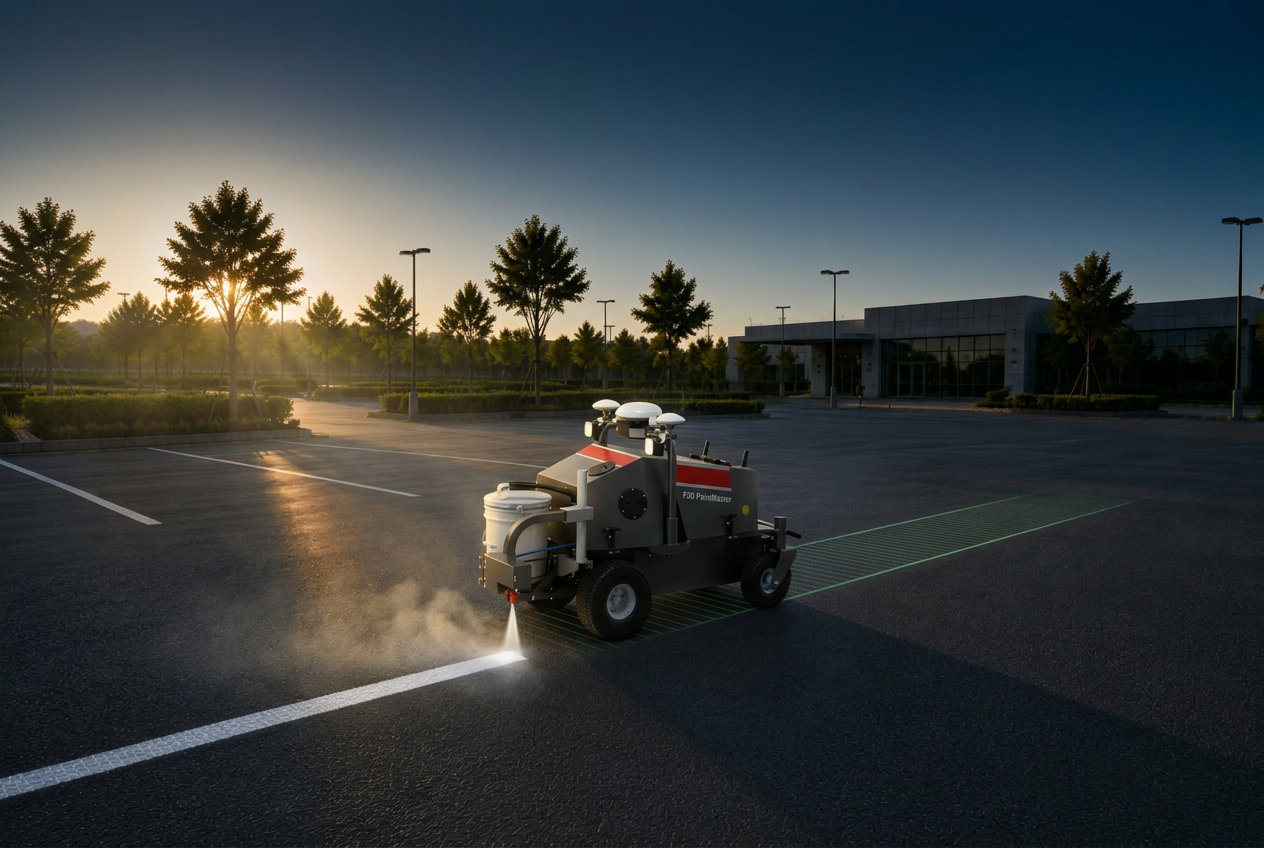

Automate High-Pressure Striping
PaintMaster Parking executes planned routes with 20 MPa high-pressure striping for consistent line quality on hard surfaces.
Restore Existing Lines with Less Rework
For repainting jobs, vision-based alignment helps follow existing line edges and centerlines for a more consistent finish.
Engineered for Automated Striping

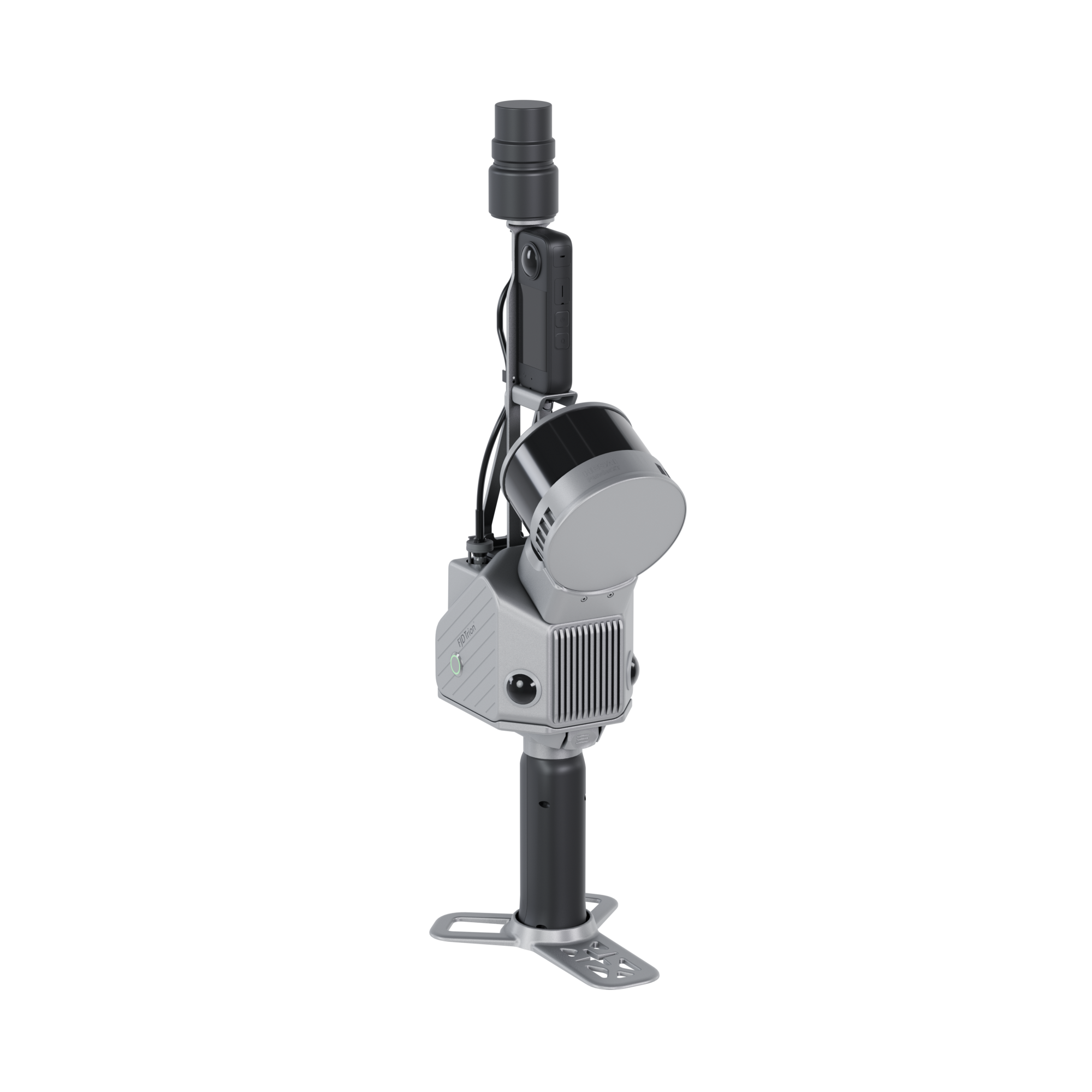

FJD Trion S2 3D LiDAR Scanning
Capture site geometry, boundaries, existing markings, obstacles, and surface conditions before striping begins.
SiteMind World-Model Planning
Create new layouts or rebuild existing markings in a digital model.
Vision-Based Alignment for Repainting
Improve repainting consistency by aligning with existing line edges and centerlines.
20 MPa High-Pressure Striping
Deliver consistent line quality on asphalt and concrete surfaces.
Real-Time Monitoring
Track machine status, striping progress, and alerts.
Multi-Robot Fleet Control
Coordinate multiple robots across large parking lots and multi-zone projects.
Real Gains in Speed, Cost, and Quality
Performance may vary by site conditions, layout complexity, crew workflow, and operating environment.
Safer Sites. Clearer Visibility.

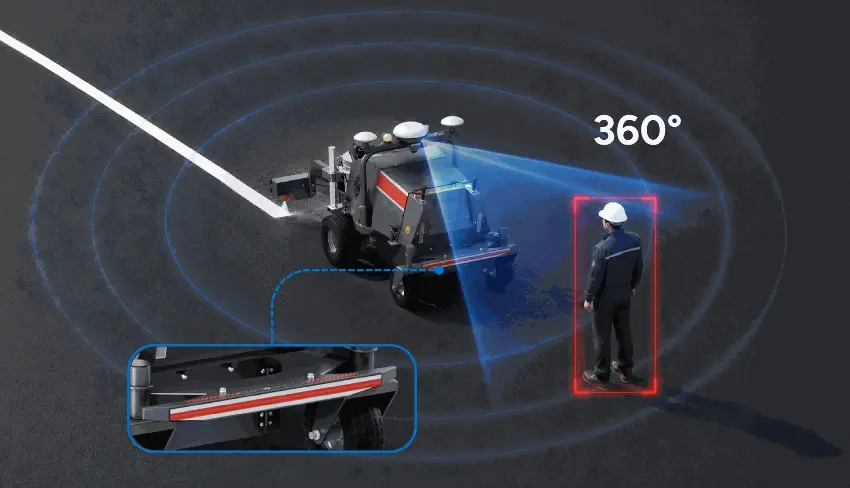

01Dual-Layer Safety
360° real-time monitoring and physical collision protection help improve safety in open parking areas.

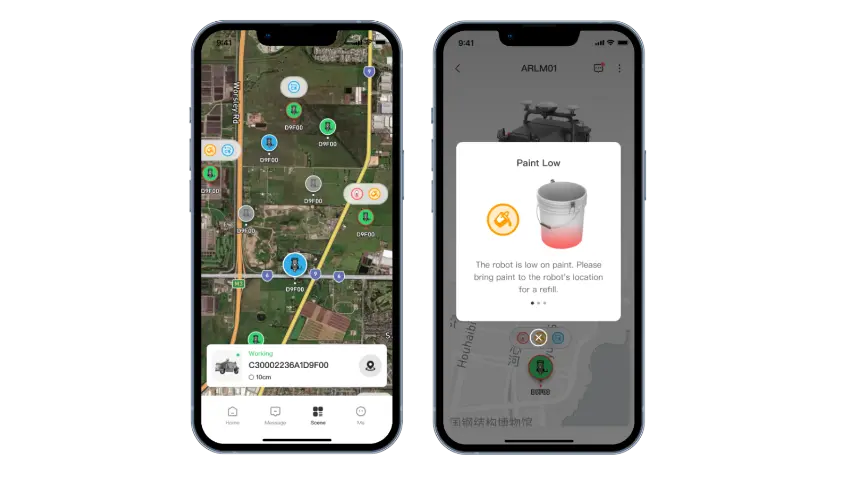

02Remote Monitoring
Track machine status, striping progress, and alerts in real time through the app.
Built for Hard-Surface Parking Lot Projects

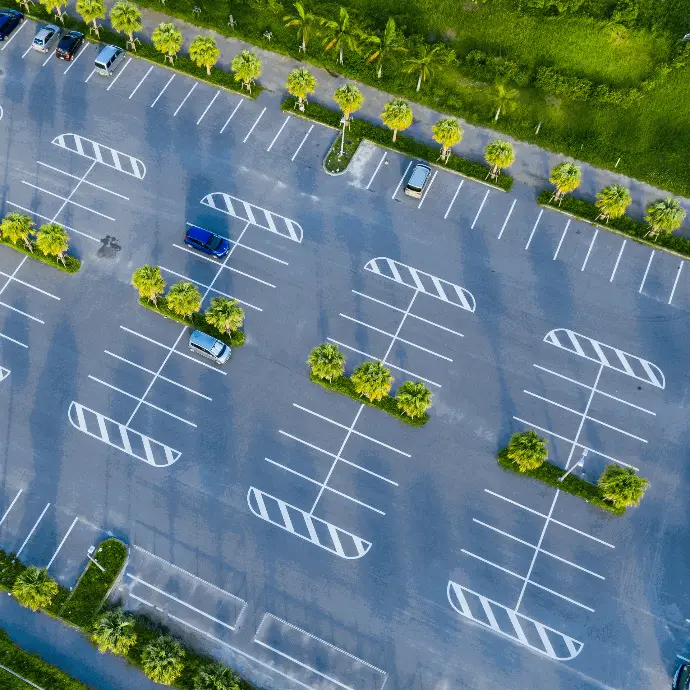

Outdoor Parking Lots

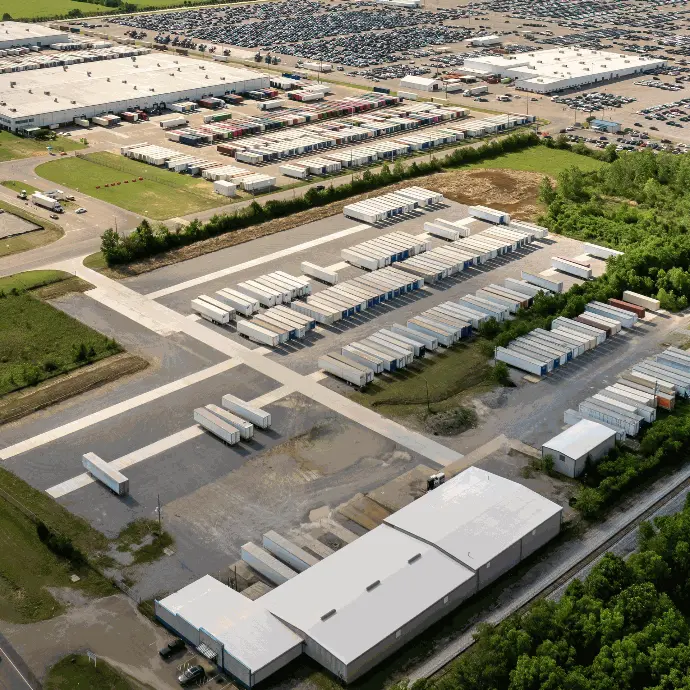

Industrial Parks

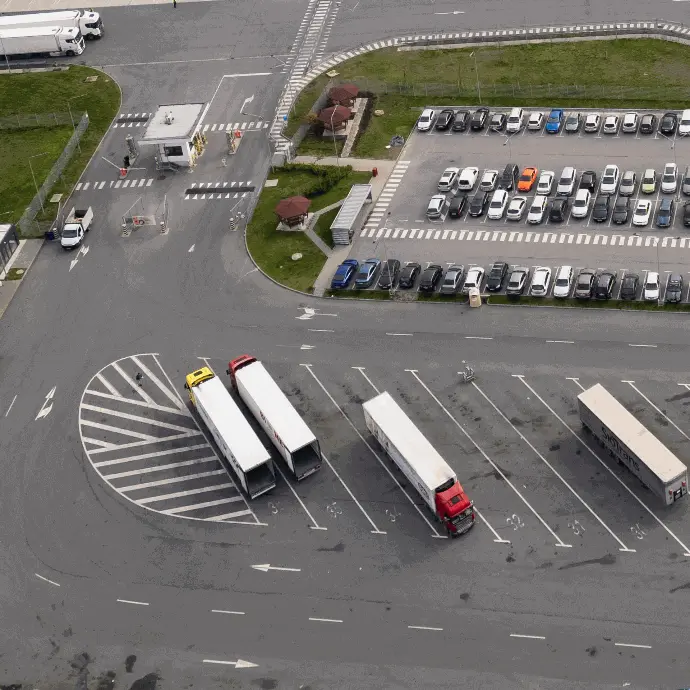

Logistics Parks & Loading Zones
Existing-Line Repainting
Built for the Job Site
- Weight
- 210 kg (463 lb)
- Dimensions
- 1700 × 1120 × 980 mm
- Software Updates
- OTA
- Connectivity
- 4G, Wireless
- Water Resistance
- IPX4
- Operating Temperature
- 5–35 °C
- Line Width Adjustment Range
- 10–25 mm (0.39–0.98 in)
- Marking Speed
- 1–4 km/h
- Paint Tank Capacity
- 19 L (5 gal)
- Maximum Flow Rate
- 2 L/min
- Maximum Pressure
- 20 MPa
- Battery Voltage
- 48 V
- Battery Capacity
- 4 kWh
- Runtime
- 6 h
- Charging Time
- 4 h
- Quick-Swap Battery
- Supported
Specifications are subject to change.
